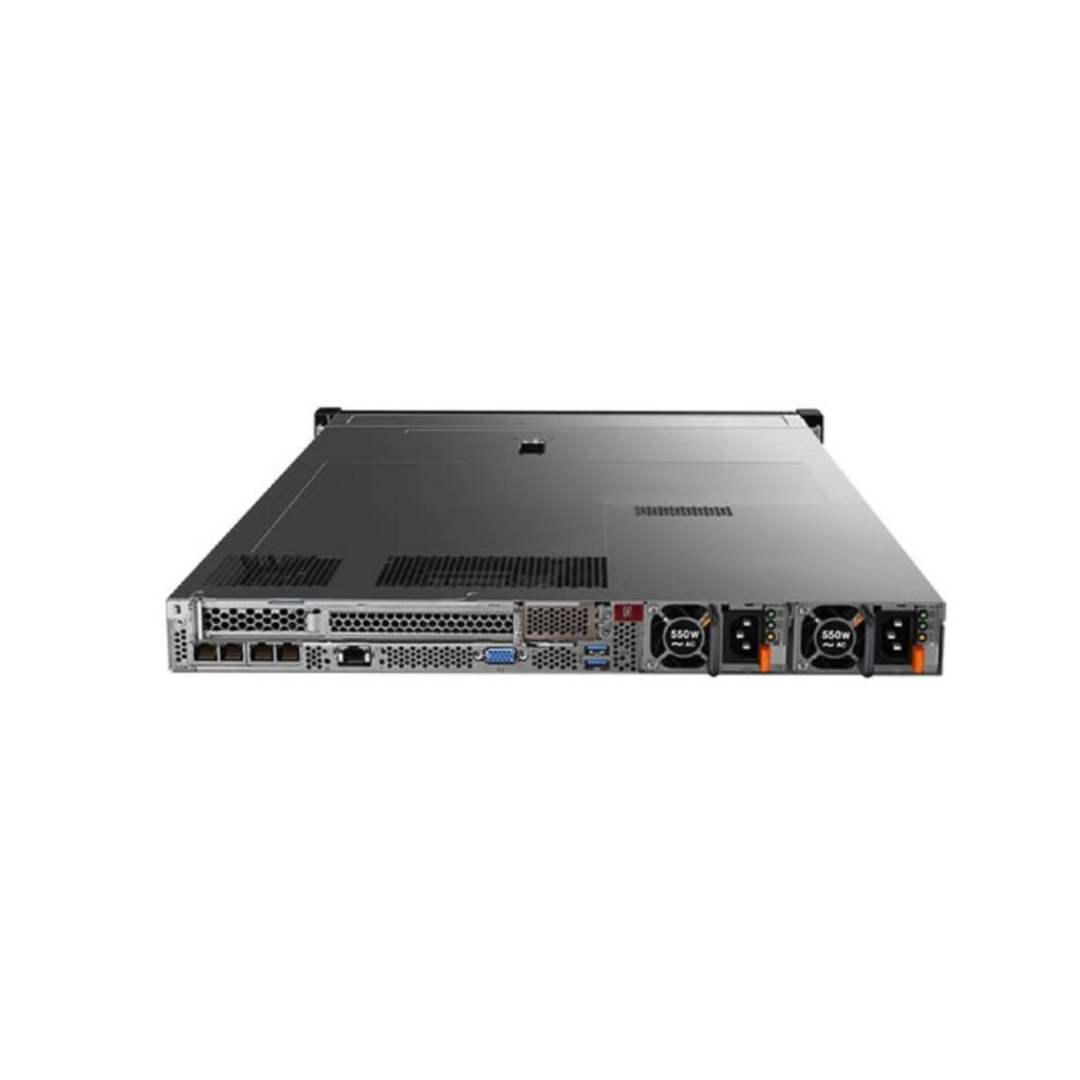

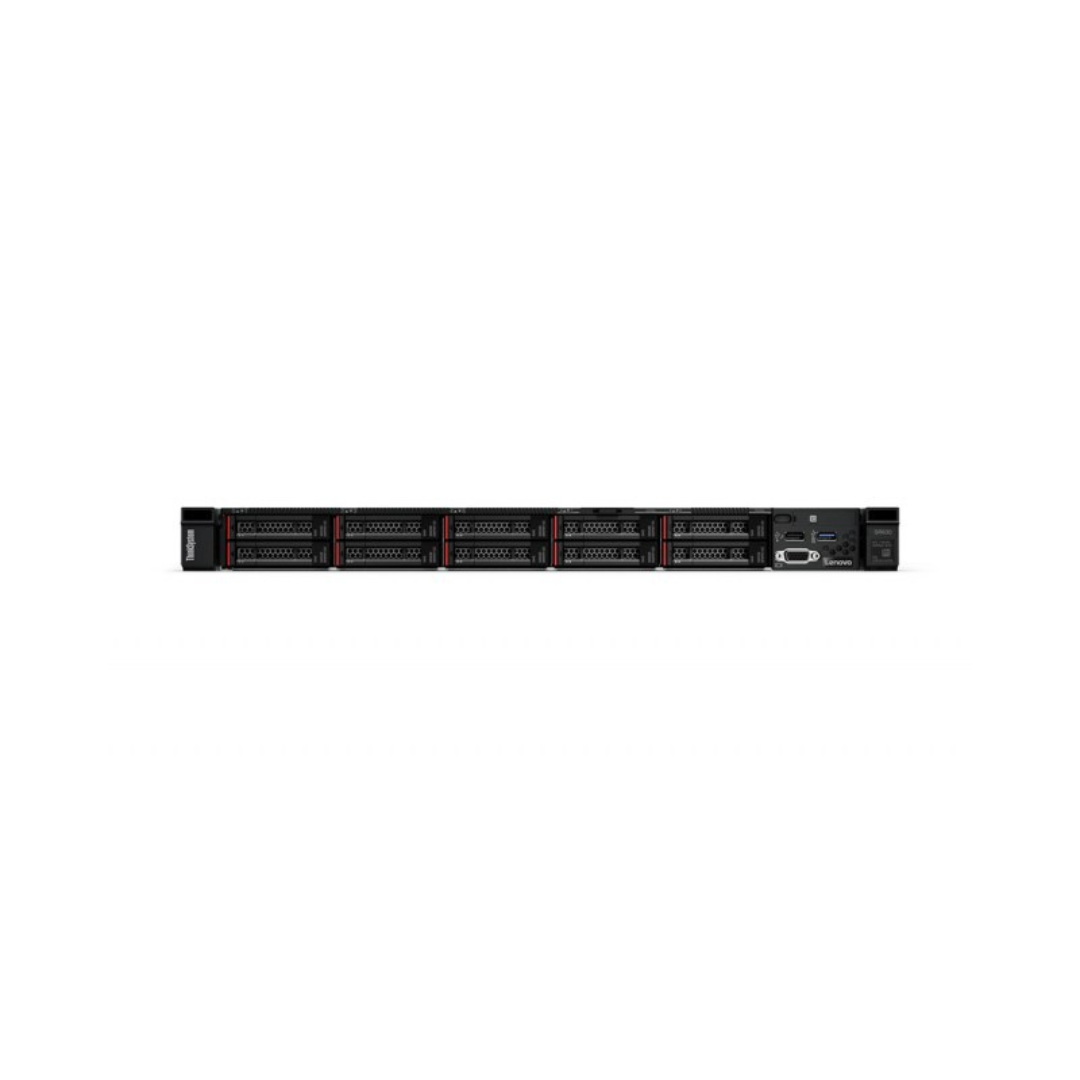

Lenovo ThinkSystem SR630 Rack Server

Lenovo ThinkSystem SR630 Rack Server 2.4GHz 32GB Rack (1U)

Highly Versatile

Featuring the largest storage capacity and highest performance in Lenovo’s 1U server portfolio, Lenovo ThinkSystem SR630 excels at many workloads. With a wide selection of processors, drives, and interconnects, it helps you: 1) transform resources into services, using validated designs for hybrid cloud; 2) perform analytics on streaming data, using validated designs for Big Data; 3) improve performance of virtualized transactional systems, using validated designs for OLTP databases; or 4) simplify storage scale-out, using configuration guides for hyper-converged infrastructure (HCI) or software-defined storage (SDS).

Highly Flexible

ThinkSystem SR630 includes two powerful Intel® Xeon® processor Scalable family CPUs with 27 per cent more cores, twice the memory capacity and 50 per cent more bandwidth than the prior generation*. It has up to four§ PCIe 3.0 slots for I/O flexibility. Unique Lenovo AnyBay technology provides optimized storage flexibility and performance, with up to 12 SFF or 4 LFF SAS/SATA HDDs/SSDs. Four direct-connect NVMe ports on the motherboard provide ultra-fast read/writes with NVMe drives and reduce costs by eliminating PCIe switch adapters. Storage can also be tiered for greater application performance, providing the most cost-effective solution. Optional mirrored M.2 boot drives ensure reliability and quick OS initialization. SR630 also supports modular LOM, ML2, and PCIe network adapters. It features 80 PLUS Platinum and Titanium PSUs to reduce energy costs and continuous operation at 45°C.

Form Factor/Height: 1U rack server
Number of Processors: Up to 2x Intel® Xeon® Platinum processors, up to 205W
Memory: Up to 3TB† in 24x slots, using 128GB† DIMMs; 2666MHz TruDDR4
Expansion Slots: (max) Up to 4x PCIe 3.0 slots (with two CPUs), incl. 1x dedicated PCIe for RAID adapter
Drive Bays: Up to 12 bays (incl. 4x AnyBay): LFF: 4x HS SAS/SATA; SFF: 4x HS AnyBay + 6x HS SAS/SATA + 2x rear; or 8x HS SAS/SATA; plus up to 2x mirrored M.2 boot
HBA/RAID Support: Hardware RAID (up to 16 ports) with flash cache; up to 16-port HBAs
Security and Availability: TPM 1.2/2.0; PFA; HS/redundant drives, fans, and PSUs; 45°C continuous operations; light path diagnostic LEDs; front-access diagnostics via dedicated USB port
Network Interface: 2/4-port 1GbE LOM; 2/4-port 10GbE LOM with Base-T or SFP+; 1x dedicated 1GbE management port
Power: 2x hot-swap/redundant: 550W/750W/1100W AC 80 PLUS Platinum; or 750W AC 80 PLUS Titanium
Systems Management: XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management
OSes Supported: Microsoft Windows Server, SLES, RHEL, and VMware vSphere. Visit com/osig for more information.
Limited Warranty: 1 year customer replaceable unit
